B57164K0681J000 | TDK (EPCOS)
NTC, 680 Ω, ±5 %, 0.45 W, 3560 K, 0.007 W/K, 20 s, THT, B57164K0681J000
Order No.: 80E6426
EAN: 4099879975812
MPN:
B57164K0681J000
B57164K681J
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 34 Weeks
NTC thermistors, type TDK/Epcos B57164K.

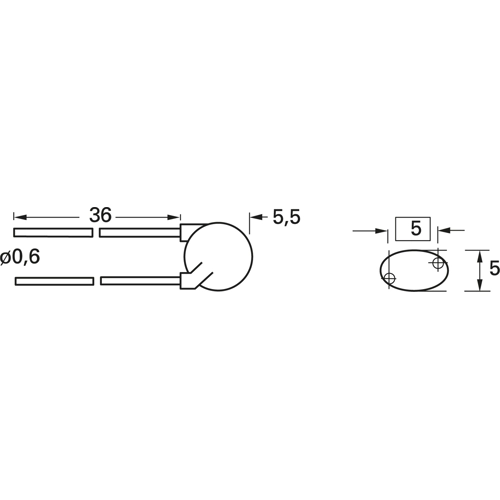

For the compensation, measurement an control of temperatures. varnished NTC resistor disc (max. 2.0 mm free of lacquer from the base of the disk to the top), tinned connections with 5.0 mm grid
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 680 Ω | |
| Tolerance | ±5 % | |
| Power | 0.45 W | |
| B-value at 25/100 °C | 3560 K | |
| Thermal conductivity (Air) | 0.007 W/K | |
| Cooling time constant (air) | 20 s | |
| Assembly | THT | |
| Grid | 5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Country of origin | ID |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
