B57127P0109M301 | TDK (EPCOS)
NTC, 1 Ω, ±20 %, 10 W, 0.05 W/K, 200 s, THT, B57127P0109M301
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.5942 € *
Available: 32 pcs.
Total Price:
2.59 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5942 €
25 pcs.
2.2134 €
100 pcs.
2.0468 €
500 pcs.
1.8326 €
1000 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

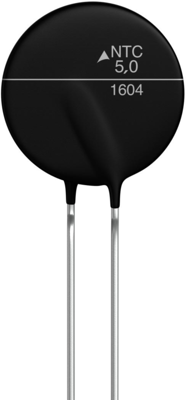

NTC Thermistor, B57127P0109M301, EPCOS
Features
- Uni curve sensor
- Short response time
- High temperature accuracy between 0 °C and 70 °C
- Excellent long-term stability
- Epoxy resin encapsulation
- PTFE-insulated leads of silver-plated nickel wire, AWG 30
- UL approval (E69802)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1 Ω | |
| Tolerance | ±20 % | |
| Power | 10 W | |
| Thermal conductivity (Air) | 0.05 W/K | |
| Cooling time constant (air) | 200 s | |
| Assembly | THT | |
| Grid | 7.5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 170 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
