B57045K0473K000 | TDK (EPCOS)

NTC, 47 kΩ, ±10 %, 0.45 W, 4450 K, 0.009 W/K, 75 s, screw mounting, B57045K0473K000

Order No.: 80E6288
EAN: 4099879975768
MPN:
B57045K0473K000
B57045K473K
Series: B57045

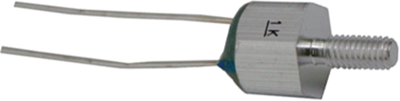

B57045K0473K000 TDK (EPCOS) NTC Thermistors Image 1

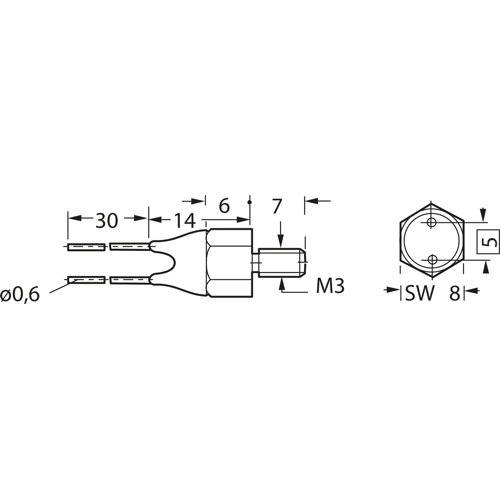

B57045K0473K000 TDK (EPCOS) NTC Thermistors Image 2
Image may differ
Unit Price (€ / pc.)
2.6180 € *
Available: 777 pcs.
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6180 €
25 pcs.
2.2372 €
100 pcs.
2.0706 €
500 pcs.
1.8445 €
1000 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

NTC thermistors, type TDK/Epcos B57045K.

For chassis mounting, with M3 bushing thread. The screwed aluminum housing ensures good thermal contact and is electrically insulated

Technical specifications
Filter Property Value
Cooling time constant (air) 75 s
Assembly screw mounting
Power 0.45 W
max. operating temperature 125 °C
B-value at 25/100 °C 4450 K
Thermal conductivity (Air) 0.009 W/K
ohmic resistance 47 kΩ
min. operating temperature -55 °C
Tolerance ±10 %
Logistics
Property Value
Country of origin ID
Original Packaging Bulk with 500 pieces
Customs tariff number 85332100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
