B57045K0154K000 | TDK (EPCOS)
NTC, 150 kΩ, ±10 %, 0.45 W, 4600 K, 0.009 W/K, 75 s, screw mounting, B57045K0154K000
Unit Price (€ / pc.)
3.3082 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
2.3562 €
100 pcs.
2.0111 €
500 pcs.
1.7612 €
1000 pcs.
1.5946 €
*incl. VAT plus shipping costs
Subject to prior sale

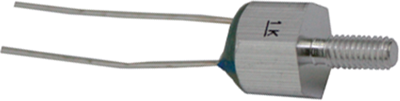

NTC thermistors, type TDK/Epcos B57045K.
For chassis mounting, with M3 bushing thread. The screwed aluminum housing ensures good thermal contact and is electrically insulated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | screw mounting | |
| Cooling time constant (air) | 75 s | |
| max. operating temperature | 125 °C | |
| Power | 0.45 W | |
| min. operating temperature | -55 °C | |
| B-value at 25/100 °C | 4600 K | |
| Thermal conductivity (Air) | 0.009 W/K | |
| ohmic resistance | 150 kΩ | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 500 pieces |
| Country of origin | ID |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
