B85321A2502Y160 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 16 A, 600 V (DC), 250 VAC, B85321A2502Y160
Order No.: 74D8307
EAN: 4099889079500
MPN:
B85321A2502Y160
Unit Price (€ / pc.)
117.691 € *
Standard delivery time from the manufacturer is: 6 Weeks

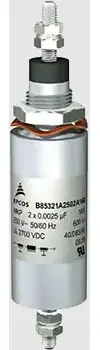

EMC filter, B85321A2502Y160, EPCOS
Feedthrough component filter
Features
- Compact dimensions
- High insertion loss
- Easy to install
- High contact reliability to central screw fixing
Applications
- Broadband interference suppression for AC/DC supply lines
- Shielded rooms
- Telephone exchanges
- Base stations
- Electrical machines
- Power supplies
Technical specifications
| Rated voltage (DC) | 600 V | |
| max. frequency | 60 Hz | |
| integrated switch | No | |
| Rated current | 16 A | |
| Version | EMC filter | |
| min. operating temperature | -40 °C | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Customs tariff number | 85363010 |
| Original Packaging | Bag with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
