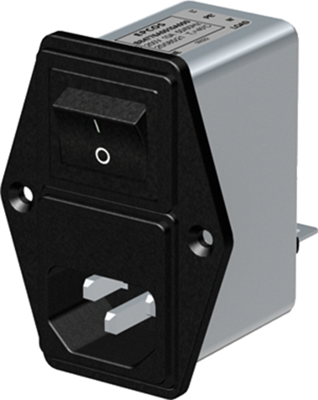

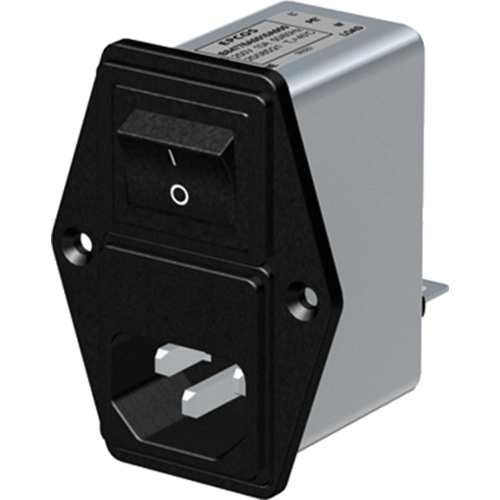

B84776A0010A000 | TDK (EPCOS)
IEC plug C14, 50 to 60 Hz, 10 A, 250 V (DC), 250 VAC, 0.33 mH, faston plug 6.3 mm, B84776A0010A000
Unit Price (€ / pc.)
41.8761 € *
Available: 32 pcs.
Next delivery: 24 pcs. on 2026-05-07
Total Price:
41.88 € *
Price list
Quantity
Price per unit*
1 pcs.
41.8761 €
5 pcs.
39.3652 €
24 pcs.
36.9614 €
48 pcs.
35.9499 €
192 pcs.
33.9269 €
*incl. VAT plus shipping costs
Subject to prior sale
EMC filter, B84776A0010A000, EPCOS
2-line filter IEC inlet filter
Features
- Easy to install
- Compact design
- Cost optimized construction
- Degree of protection front side with power plug: IP 40
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecom system
- DC applications
- Measuring instruments
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | IEC plug C14 | |
| min. frequency | 50 Hz | |
| max. frequency | 60 Hz | |
| Rated voltage (DC) | 250 V | |
| Rated current | 10 A | |
| Rated Voltage | 250 VAC | |
| Capacity X|Y | X2 220 nF, Y2 2 x2.2 nF | |
| Inductance per line | 0.33 mH | |
| ohmic resistance | 1 MΩ | |
| Connection | faston plug 6.3 mm | |
| Number of phases | 1 | |
| With fuse | Yes | |
| integrated switch | Yes | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 24 pieces |
| Customs tariff number | 85363010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Cadmium oxide |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
