B84771M0012A000 | TDK (EPCOS)
IEC plug C14, 50 to 60 Hz, 12 A, 250 V (DC), 250 VAC, 140 µH, faston plug 6.3 mm, B84771M0012A000
Unit Price (€ / pc.)
9.4605 € *
Available: 60 pcs.
Total Price:
9.46 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4605 €
10 pcs.
8.3181 €
60 pcs.
7.6398 €
120 pcs.
7.3661 €
480 pcs.
6.9020 €
*incl. VAT plus shipping costs
Subject to prior sale

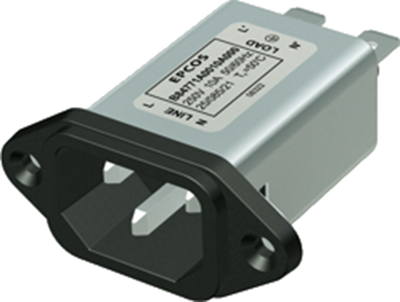

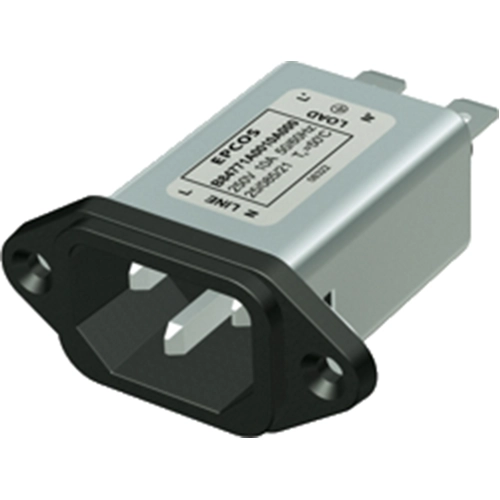

EMC filter, B84771M0012A000, EPCOS
2-line filter IEC inlet filter
Features
- Easy to install
- Compact design
- Cost optimized construction
- Degree of protection front side with power plug: IP 40
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecom system
- Data system
- Measuring instruments
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1 MΩ | |
| Inductance per line | 140 µH | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| Rated voltage (DC) | 250 V | |
| max. frequency | 60 Hz | |
| Connection | faston plug 6.3 mm | |
| Number of phases | 1 | |
| With fuse | No | |
| Rated current | 12 A | |
| Rated Voltage | 250 VAC | |
| Capacity X|Y | X2 100 nF | |
| min. operating temperature | -25 °C | |
| integrated switch | No | |
| Version | IEC plug C14 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 60 pieces |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
