B84742A0130R190 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 130 A, 1 kV (DC), 500 VAC, terminal block, B84742A0130R190
Order No.: 74D8217
EAN: 4099889078848
MPN:
B84742A0130R190
B84742A130R190
Unit Price (€ / pc.)
428.1501 € *
Standard delivery time from the manufacturer is: 20 Weeks

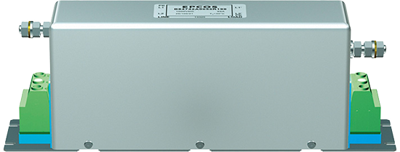

EMC filter, B84742A0130R190, EPCOS
2-line filter for converters and power electronics
Features
- High DC voltage
- Easy to install
- Space saving by optimized footprint
- Low weight
- Degree of protection: IP 20
Applications
- DC-link filters in photovoltaic system
- Single-phase power controllers
- AC applications with phase-to-phase voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 1 kV | |
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 130 A | |
| With fuse | No | |
| Version | EMC filter | |
| min. operating temperature | -25 °C | |
| Connection | terminal block | |
| Rated Voltage | 500 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 0.7 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 2 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
