B84243A8060W000 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 60 A, 305/530 VAC, terminal block, B84243A8060W000
Order No.: 74D8209
EAN: 4099889078794
MPN:
B84243A8060W000
B84243A8060W
Unit Price (€ / pc.)
350.3360 € *
Standard delivery time from the manufacturer is: 32 Weeks

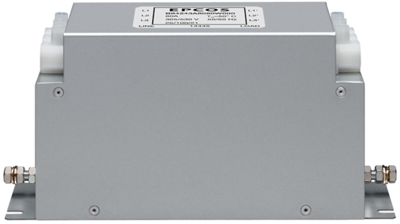

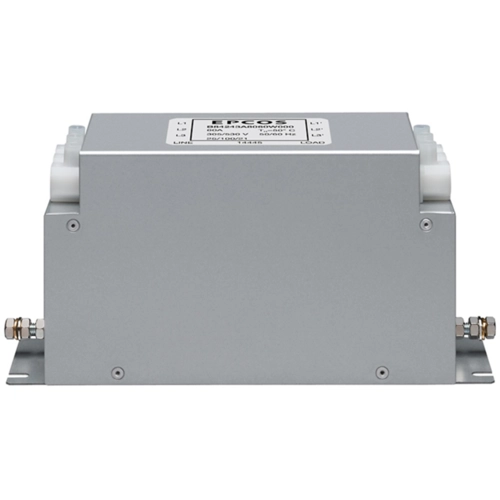

EMC filter, B84243A8060W000, EPCOS
3-line filter for converters and power electronics
Features
- Short Circuit Current Rating SCCR 100 kA
- Degree of protection: IP 20
Applications
- Frequency converters for motor drives
- Elevators
- Conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
- Textile machines, packaging machines, machine-tools
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1.5 mΩ | |
| max. operating temperature | 100 °C | |
| Rated current | 60 A | |
| min. operating temperature | -25 °C | |
| integrated switch | No | |
| With fuse | No | |
| Number of phases | 3 | |
| min. frequency | 50 Hz | |
| Connection | terminal block | |
| Version | EMC filter | |
| Rated Voltage | 305/530 VAC | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Bulk with 1 piece |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
