B84243A8033W000 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 33 A, 305/530 VAC, terminal block, B84243A8033W000
Unit Price (€ / pc.)
295.5960 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
295.60 € *
Price list
Quantity
Price per unit*
1 pcs.
295.5960 €
10 pcs.
266.0364 €
*incl. VAT plus shipping costs
**Subject to prior sale

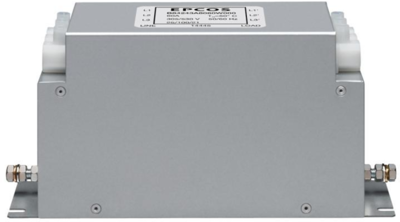

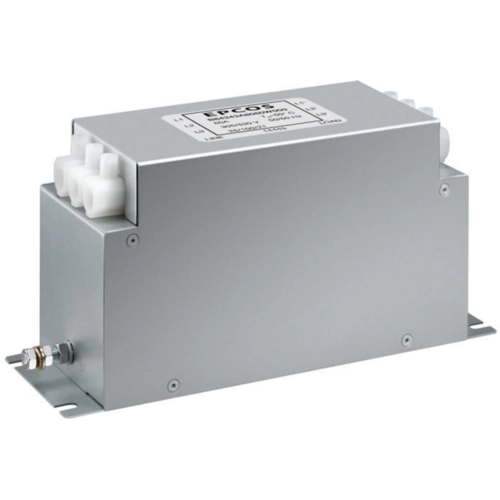

EMC filter, B84243A8033W000, EPCOS
3-line filter for converters and power electronics
Features
- Short Circuit Current Rating SCCR 100 kA
- Degree of protection: IP 20
Applications
- Frequency converters for motor drives
- Elevators
- Conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
- Textile machines, packaging machines, machine-tools
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 3 | |
| integrated switch | No | |
| Rated current | 33 A | |
| With fuse | No | |
| Version | EMC filter | |
| min. operating temperature | -25 °C | |
| Connection | terminal block | |
| Rated Voltage | 305/530 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 3 mΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85363010 |
| Original Packaging | Bulk with 1 piece |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
