B84243A8003U000 | TDK (EPCOS)

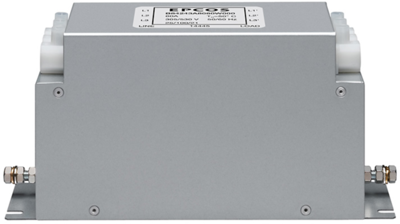

EMC filter, 50 to 60 Hz, 3 A, 305/530 VAC, terminal block, B84243A8003U000
Unit Price (€ / pc.)
132.8516 € *
Standard delivery time from the manufacturer is: 32 Weeks
Total Price:
132.85 € *
Price list
Quantity
Price per unit*
1 pcs.
132.8516 €
10 pcs.
119.5593 €
*incl. VAT plus shipping costs
Subject to prior sale
EMC filter, B84243A8003U000, EPCOS
3-line filter for converters and power electronics
Features
- Short Circuit Current Rating SCCR 100 kA
- Degree of protection: IP 20
Applications
- Frequency converters for motor drives
- Elevators
- Conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
- Textile machines, packaging machines, machine-tools
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 40 mΩ | |
| max. operating temperature | 100 °C | |
| Rated current | 3 A | |
| min. operating temperature | -25 °C | |
| integrated switch | No | |
| With fuse | No | |
| Number of phases | 3 | |
| min. frequency | 50 Hz | |
| Connection | terminal block | |
| Version | EMC filter | |
| Rated Voltage | 305/530 VAC | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Bulk with 1 piece |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
