B84144A0025R000 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 25 A, 250/440 VAC, print terminal, B84144A0025R000

Order No.: 74D8179
EAN: 4099889078664
MPN:
B84144A0025R000
B84144A25R
Series: B84144A.R000

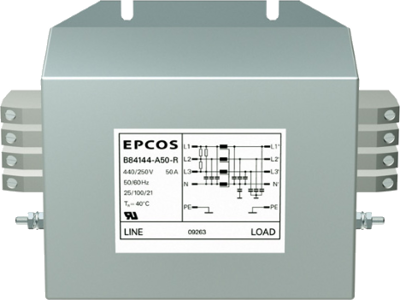

B84144A0025R000 TDK (EPCOS) Interference suppression filter
Image may differ
Unit Price (€ / pc.)
315.3024 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,261.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
4 pcs.
315.3024 €

EMC filter, B84144A0025R000, EPCOS

2-line filter for converters and power electronics

Features

  • High insertion loss
  • Easy to install
  • Degree of protection: IP 20
  • Very compact design
  • Optimized for long motor cables and operation under full load

Applications

  • Frequency converters for motor drives
  • Elevators
  • Traction and conveyor system
  • HVAC system (heating, ventilation and air conditioning)
  • Power supplies
  • DC applications
Technical specifications
max. frequency 60 Hz
Number of phases 3
integrated switch No
Rated current 25 A
With fuse No
Version EMC filter
min. operating temperature -25 °C
Connection print terminal
Rated Voltage 250/440 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
ohmic resistance 6 mΩ
Logistics
Country of origin HU
Customs tariff number 85363010
Original Packaging Bulk with 2 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
