B84144A0008R120 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 8 A, 300/520 VAC, print terminal, B84144A0008R120
Unit Price (€ / pc.)
145.9773 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
875.86 € *
Price list
Quantity
Price per unit*
6 pcs.
145.9773 €
12 pcs.
143.0618 €
*incl. VAT plus shipping costs
Subject to prior sale

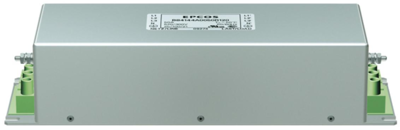

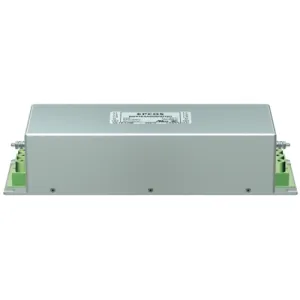

EMC filter, B84144A0008R120, EPCOS
4-line filter for converters and power electronics
Features
- Easy to install
- Space-saving design
- Optimized for long motor cables
Applications
- Frequency converters for motor drives
- Elevators
- Conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
- Industrial applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Connection | print terminal | |
| Rated Voltage | 300/520 VAC | |
| ohmic resistance | 13.6 mΩ | |
| Number of phases | 3 | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| Version | EMC filter | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | HU |
| Original Packaging | Bulk with 6 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
