B84143V0050R227 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 50 A, 300/520 VAC, 1.2 mH, terminal block, B84143V0050R227
Order No.: 74D8152
EAN: 4099889078633
MPN:
B84143V0050R227
B84143V50R227
Unit Price (€ / pc.)
977.2280 € *
Standard delivery time from the manufacturer is: 8 Weeks

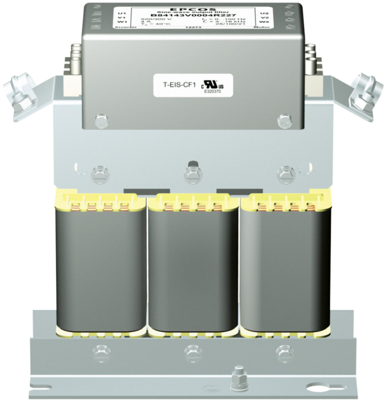

EMC filter, B84143V0050R227, EPCOS
Output filters Sine-wave output filters for 3-phase system
Features
- Reduction of motor noise and eddy current losses
- Generation of sinusoidal phase-to-phase voltage with low ripple
- dv/dt reduction
- Easy to install
- Compact design
- Degree of protection: IP20, IP10, IP00
- Natural cooling
- Wiring between inverter and filter must be shorter than 10 meters
Applications
- Frequency converters for motor drives
- Elevators
- Traction and conveyor system
- HVAC system (heating, ventilation and air conditioning)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 12 mΩ | |
| max. operating temperature | 85 °C | |
| Rated current | 50 A | |
| Inductance per line | 1.2 mH | |
| min. operating temperature | -25 °C | |
| integrated switch | No | |
| With fuse | No | |
| Number of phases | 3 | |
| min. frequency | 50 Hz | |
| Connection | terminal block | |
| Version | EMC filter | |
| Rated Voltage | 300/520 VAC | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 1 piece |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
