B84143B2500S021 | TDK (EPCOS)

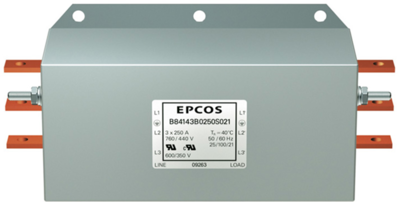

EMC filter, 50 to 60 Hz, 2.5 kA, 440/760 VAC, terminal block, B84143B2500S021
Unit Price (€ / pc.)
4,667.1562 € *
Standard delivery time from the manufacturer is: 8 Weeks
EMC filter, B84143B2500S021, EPCOS
3-line filter for converters and power electronics
Features
- Easy to install
- Very compact design
- Low weight
Applications
- Frequency converters for motor drives
- Wind farms
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| Rated Voltage | 440/760 VAC | |
| Connection | terminal block | |
| min. operating temperature | -25 °C | |
| Number of phases | 3 | |
| Version | EMC filter | |
| Rated current | 2.5 kA | |
| integrated switch | No | |
| ohmic resistance | 0.015 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 1 piece |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
