B84143B0320S021 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 320 A, 440/760 VAC, terminal block, B84143B0320S021
Order No.: 74D8058
EAN: 4099889078541
MPN:
B84143B0320S021
B84143B320S21
Unit Price (€ / pc.)
1,230.8765 € *
Standard delivery time from the manufacturer is: 7 Weeks

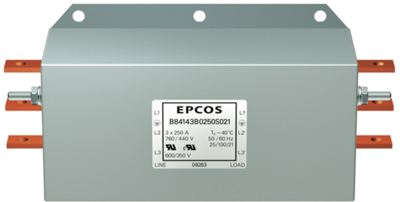

EMC filter, B84143B0320S021, EPCOS
3-line filter for converters and power electronics
Features
- Easy to install
- Very compact design
- Low weight
Applications
- Frequency converters for motor drives
- Wind farms
- Power supplies
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 3 | |
| integrated switch | No | |
| Rated current | 320 A | |
| With fuse | No | |
| Version | EMC filter | |
| min. operating temperature | -25 °C | |
| Connection | terminal block | |
| Rated Voltage | 440/760 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 0.067 mΩ |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 1 piece |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| RoHS conform | Yes |
