B84143A0120R105 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 120 A, 520/300 VAC, terminal block, B84143A0120R105
Order No.: 74D8016
EAN: 4099889078480
MPN:
B84143A0120R105
B84143A120R105
Unit Price (€ / pc.)
495.1590 € *
Standard delivery time from the manufacturer is: 8 Weeks

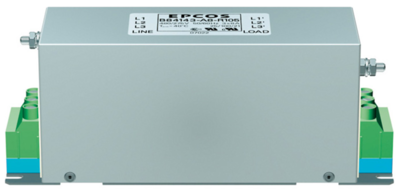

EMC filter, B84143A0120R105, EPCOS
3-line filter for converters and power electronics
Features
- Very good price/performance ratio
- Ultra-compact design
- Low weight
- Easy to install
- Optimized for long motor cables
Applications
- Frequency converters for motor drives
- Elevators
- Traction and conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 0.9 mΩ | |
| max. operating temperature | 100 °C | |
| Rated current | 120 A | |
| min. operating temperature | -25 °C | |
| integrated switch | No | |
| With fuse | No | |
| Number of phases | 3 | |
| min. frequency | 50 Hz | |
| Connection | terminal block | |
| Version | EMC filter | |
| Rated Voltage | 520/300 VAC | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 1 piece |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
