B84143A0050R410 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 50 A, 520/300 VAC, terminal block, B84143A0050R410
Order No.: 74D8005
EAN: 4099889078435
MPN:
B84143A0050R410
B84143A50R410
Unit Price (€ / pc.)
481.7358 € *
Standard delivery time from the manufacturer is: 7 Weeks

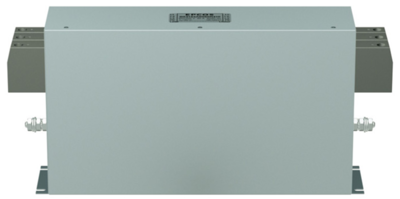

EMC filter, B84143A0050R410, EPCOS
3-line filter for regenerative converters
Features
- High insertion loss
- Easy to install
- Compact design
- Degree of protection: IP 20
- Optimized for long motor cables
Applications
- Frequency and regenerative converters
- Elevators
- Machine tools
- Traction and conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
- Textile machines, packaging machines, machine-tools
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 3 | |
| integrated switch | No | |
| Rated current | 50 A | |
| With fuse | No | |
| Version | EMC filter | |
| min. operating temperature | -25 °C | |
| Connection | terminal block | |
| Rated Voltage | 520/300 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 1.6 mΩ |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 2 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
