B84143A0050R021 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 50 A, 440/760 VAC, terminal block, B84143A0050R021
Order No.: 74D8003
EAN: 4099889078411
MPN:
B84143A0050R021
B84143A50R21
Unit Price (€ / pc.)
401.7321 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

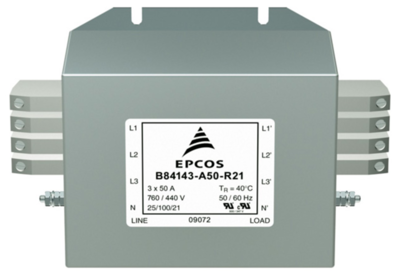

EMC filter, B84143A0050R021, EPCOS
3-line filter for converters and power electronics
Features
- High insertion loss
- Easy to install
- Degree of protection: IP 20
- Space-saving design
- Optimized for long motor cables
- Design complies
Applications
- Frequency converters for motor drives
- Elevators
- Traction and conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Wind farms
- Power supplies
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 3 | |
| integrated switch | No | |
| Rated current | 50 A | |
| With fuse | No | |
| Version | EMC filter | |
| min. operating temperature | -25 °C | |
| Connection | terminal block | |
| Rated Voltage | 440/760 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 2 mΩ |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 2 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
