B84143A0035R166 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 35 A, 520/300 VAC, terminal block, B84143A0035R166
Order No.: 74D7998
EAN: 4099889078367
MPN:
B84143A0035R166
B84143A35R166
Unit Price (€ / pc.)
140.9436 € *
Standard delivery time from the manufacturer is: 20 Weeks

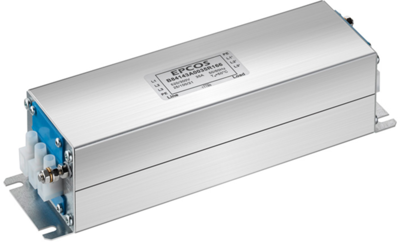

EMC filter, B84143A0035R166, EPCOS
3-line filter for converters and power electronics
Features
- Very good price/performance ratio
- Ultra-compact design
- Low weight
- Degree of protection: IP 20
- Easy to install
Applications
- Frequency converters for motor drives
- Elevators
- Conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 2.7 mΩ | |
| max. operating temperature | 100 °C | |
| Rated current | 35 A | |
| min. operating temperature | -25 °C | |
| integrated switch | No | |
| With fuse | No | |
| Number of phases | 3 | |
| min. frequency | 50 Hz | |
| Connection | terminal block | |
| Version | EMC filter | |
| Rated Voltage | 520/300 VAC | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Bulk with 6 pieces |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
