B84143A0012R000 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 12 A, 275/480 VAC, terminal block, B84143A0012R000
Order No.: 74D7991
EAN: 4099889078305
MPN:
B84143A0012R000
B84143A12R
Unit Price (€ / pc.)
162.2803 € *
Standard delivery time from the manufacturer is: 7 Weeks

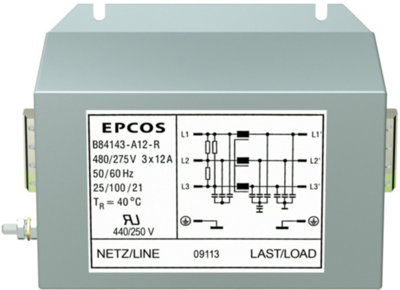

EMC filter, B84143A0012R000, EPCOS
3-line filter for converters and power electronics
Features
- High insertion loss
- Optimized leakage current
- Easy to install
- Degree of protection: IP 20
- Optimized for long motor cables
Applications
- Frequency converters for motor drives
- Elevators
- Traction and conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 3 | |
| integrated switch | No | |
| Rated current | 12 A | |
| With fuse | No | |
| Version | EMC filter | |
| min. operating temperature | -25 °C | |
| Connection | terminal block | |
| Rated Voltage | 275/480 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 20 mΩ |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85363010 |
| Original Packaging | Bulk with 3 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
