B84143A0010A166 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 10 A, 520/300 VAC, terminal block, B84143A0010A166

Order No.: 74D7989
EAN: 4099889078282
MPN:
B84143A0010A166
B84143A10A166
B84143A0010A166 TDK (EPCOS) Interference suppression filter

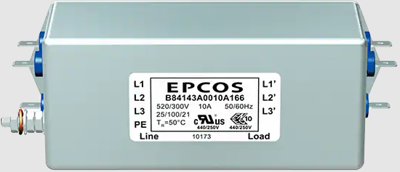

Image may differ
Unit Price (€ / pc.)
83.5142 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,336.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
16 pcs.
83.5142 €

EMC filter, B84143A0010A166, EPCOS

3-line filter for converters and power electronics

Features

  • Very good price/performance ratio
  • Ultra-compact design
  • Low weight
  • Degree of protection: IP 20
  • Easy to install

Applications

  • Frequency converters for motor drives
  • Elevators
  • Conveyor system
  • HVAC system (heating, ventilation and air conditioning)
  • Power supplies
Technical specifications
Filter Property Value
max. frequency 60 Hz
Number of phases 3
integrated switch No
Rated current 10 A
With fuse No
Version EMC filter
min. operating temperature -25 °C
Connection terminal block
Rated Voltage 520/300 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
ohmic resistance 12.9 mΩ
Logistics
Property Value
Country of origin HU
Customs tariff number 85363010
Original Packaging Carton with 16 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
