B84131M0001G135 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 35 A, 250/440 VAC, threaded bolt M6, B84131M0001G135

Order No.: 75D2809
EAN: 4099889080391
MPN:
B84131M0001G135
B84131M1G135
Series: B84131

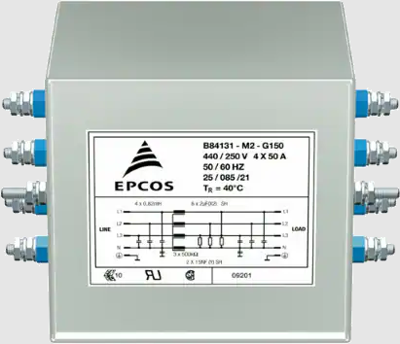

B84131M0001G135 TDK (EPCOS) Interference suppression filter Image 1
B84131M0001G135 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
341.4943 € *
Available: 5 pcs.
Total Price:
341.49 € *
Price list
Quantity
Price per unit*
1 pcs.
341.4943 €
6 pcs.
334.6637 €
12 pcs.
327.8450 €
27 pcs.
320.1576 €
*incl. VAT plus shipping costs
Subject to prior sale

EMC filter, B84131M0001G135, EPCOS

4-line filter for installations and system

Features

  • High insertion loss
  • Compact, cost-optimized design
  • Easy to install

Applications

  • Power supplies
  • Data system
  • Telecom system
  • Medical equipment
  • Industrial installations
Technical specifications
Filter Property Value
Number of phases 3
Rated Voltage 250/440 VAC
min. frequency 50 Hz
min. operating temperature -25 °C
Rated current 35 A
max. operating temperature 85 °C
Version EMC filter
Connection threaded bolt M6
max. frequency 60 Hz
With fuse No
integrated switch No
Logistics
Property Value
Customs tariff number 85363010
Country of origin HU
Original Packaging Bulk with 3 pieces
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
