B84131M0001G125 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 25 A, 250/440 VAC, threaded bolt, B84131M0001G125
Order No.: 74D7932
EAN: 4099889078138
MPN:
B84131M0001G125
B84131M1G125
Unit Price (€ / pc.)
262.8234 € *
Standard delivery time from the manufacturer is: 8 Weeks

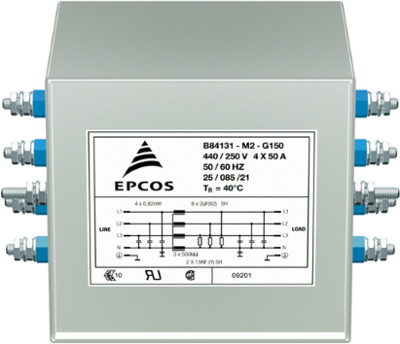

EMC filter, B84131M0001G125, EPCOS
4-line filter for installations and system
Features
- High insertion loss
- Compact, cost-optimized design
- Easy to install
Applications
- Power supplies
- Data system
- Telecommunications
- Medical equipment
- Industrial installations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Connection | threaded bolt | |
| Rated Voltage | 250/440 VAC | |
| Number of phases | 3 | |
| With fuse | No | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -25 °C | |
| Version | EMC filter | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | HU |
| Original Packaging | Bulk with 3 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
