B84115E0000B030 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 3 A, 250 V (DC), 250 VAC, 270 µH, faston plug 6.3 mm, B84115E0000B030

Order No.: 75D2740
EAN: 4099889080315
MPN:
B84115E0000B030
B84115EB30
Series: B84115E

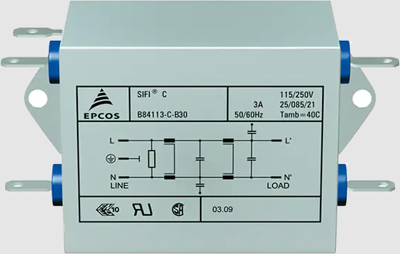

B84115E0000B030 TDK (EPCOS) Interference suppression filter Image 1
B84115E0000B030 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
54.0736 € *
Available: 175 pcs.
Total Price:
54.07 € *
Price list
Quantity
Price per unit*
1 pcs.
54.0736 €
10 pcs.
47.9927 €
25 pcs.
46.3743 €
50 pcs.
46.3267 €
100 pcs.
45.0058 €
*incl. VAT plus shipping costs
Subject to prior sale

EMC filter, B84115E0000B030, EPCOS

2-line filter SIFI-E for very high insertion loss

Features

  • Easy to install
  • Compact design
  • Optimized leakage current < 0.5 mA

Applications

  • Switch-mode power supplies
  • Industrial electronics
  • Telecommunications
  • Data system
  • DC applications
Technical specifications
Filter Property Value
With fuse No
Connection faston plug 6.3 mm
max. frequency 60 Hz
Version EMC filter
max. operating temperature 85 °C
Rated voltage (DC) 250 V
min. frequency 50 Hz
Capacity X|Y X2 2 x 470 nF, Y2 2 x 4.7 nF
Inductance per line 270 µH
Number of phases 1
min. operating temperature -25 °C
integrated switch No
Rated current 3 A
Rated Voltage 250 VAC
Logistics
Property Value
Original Packaging Bulk with 32 pieces
Customs tariff number 85363010
Country of origin HU
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
