B84114D0000B110 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 10 A, 250 V (DC), 250 VAC, 4.7 mH, faston plug 6.3 mm, B84114D0000B110
Unit Price (€ / pc.)
89.3690 € *
Available: 23 pcs.
Total Price:
89.37 € *
Price list
Quantity
Price per unit*
1 pcs.
89.3690 €
5 pcs.
84.0140 €
16 pcs.
80.5868 €
64 pcs.
76.2790 €
128 pcs.
74.1489 €
*incl. VAT plus shipping costs
Subject to prior sale

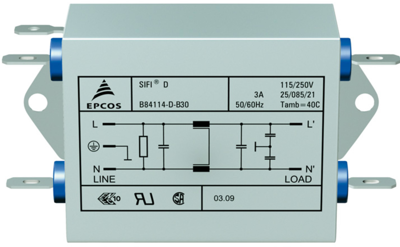

EMC filter, design SIFI D, type TDK/Epcos B84114.
Single-phase, for ultra high attenuation, molded. Shielded aluminum package. Also as solution for EMC problems and RF interference suppression; Rated voltage: 250 V AC/DC, 50/60 Hz. Rated capacitance: 2 x 0.47 µF (10 A 2 x 0.68 µF) + 2 x 4700 pF (X2/Y2). IEC climate category: 25/085/21. Operating temperatures: –25 to +85 °C. Leakage current: max. 0.5 mA. Test logo: ENEC 10, UL, CSA. Connections: tabs on both ends. Mounting: longitudinal straps.

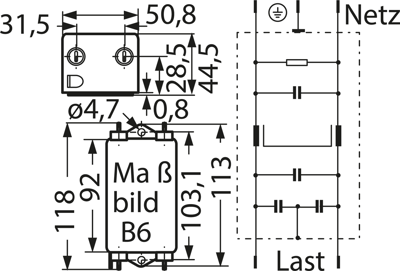

Technical attributes (type, rated current, inductance, dimensional drawing): B84114DB110, 10 A, 2 x 4.7 mH, B 6
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Rated voltage (DC) | 250 V | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 4.7 mH | |
| Capacity X|Y | X2 2 x 680 nF, Y2 2 x 4.7 nF | |
| Number of phases | 1 | |
| With fuse | No | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -25 °C | |
| Version | EMC filter | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | HU |
| Original Packaging | Bulk with 16 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
