B84113H0000M120 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 20 A, 250 V (DC), 250 VAC, 1.2 mH, threaded bolt M5, B84113H0000M120
Order No.: 75D1608
EAN: 4099889079623
MPN:
B84113H0000M120
B84113HM120
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
81.0509 € *
Standard delivery time from the manufacturer is: 14 Weeks

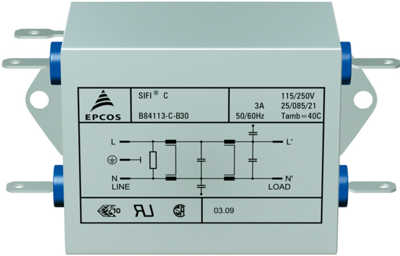

EMC filter, B84113H0000M120, EPCOS
2-line filter SIFI-H for very high insertion loss
Features
- Easy to install
- Compact design
- Optimized leakage current < 0.5 mA
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecommunications
- Data system
- DC applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | EMC filter | |
| min. frequency | 50 Hz | |
| max. frequency | 60 Hz | |
| Rated voltage (DC) | 250 V | |
| Rated current | 20 A | |
| Rated Voltage | 250 VAC | |
| Capacity X|Y | X2 2 x 2200 nF | |
| Inductance per line | 1.2 mH | |
| Connection | threaded bolt M5 | |
| Number of phases | 1 | |
| With fuse | No | |
| integrated switch | No | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 16 pieces |
| Country of origin | HU |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Triphenyl phosphate |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
