B84113H0000M116 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 16 A, 250 V (DC), 250 VAC, 1.3 mH, faston plug 6.3 mm, B84113H0000M116

Order No.: 75D1606
EAN: 4099889079616
MPN:
B84113H0000M116
B84113HM116
Series: B84113H

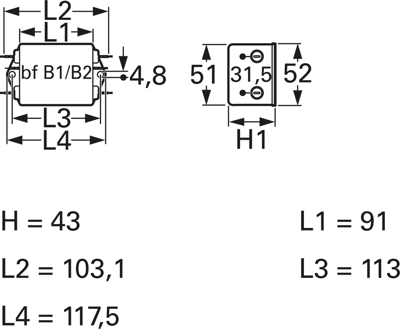

B84113H0000M116 TDK (EPCOS) Interference suppression filter Image 1

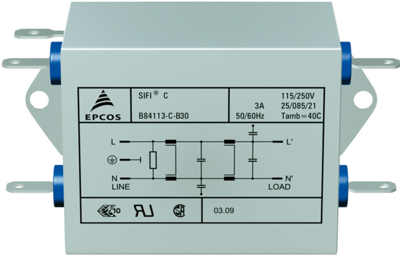

B84113H0000M116 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
41.6619 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
666.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
16 pcs.
41.6619 €

EMC filter, B84113H0000M116, EPCOS

2-line filter SIFI-H for very high insertion loss

Features

  • Easy to install
  • Compact design
  • Optimized leakage current < 0.5 mA

Applications

  • Switch-mode power supplies
  • Industrial electronics
  • Telecommunications
  • Data system
  • DC applications
Technical specifications
Filter Property Value
Connection faston plug 6.3 mm
Capacity X|Y X2 2 x 1500 nF
Number of phases 1
Rated voltage (DC) 250 V
max. frequency 60 Hz
min. frequency 50 Hz
max. operating temperature 100 °C
Inductance per line 1.3 mH
min. operating temperature -25 °C
Rated Voltage 250 VAC
Version EMC filter
Rated current 16 A
With fuse No
integrated switch No
Logistics
Property Value
Country of origin HU
Customs tariff number 85363010
Original Packaging Bulk with 16 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
