B84113H0000B116 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 16 A, 250 V (DC), 250 VAC, 1.3 mH, faston plug 6.3 mm, B84113H0000B116
Unit Price (€ / pc.)
58.9169 € *
Available: 19 pcs.
Total Price:
58.92 € *
Price list
Quantity
Price per unit*
1 pcs.
58.9169 €
5 pcs.
55.3826 €
16 pcs.
53.1216 €
64 pcs.
50.3013 €
128 pcs.
48.8852 €
*incl. VAT plus shipping costs
Subject to prior sale

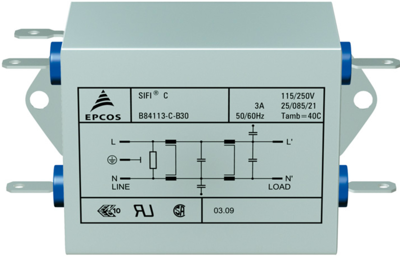

EMC filter, B84113H0000B116, EPCOS
2-line filter SIFI-H for very high insertion loss
Features
- Easy to install
- Compact design
- Optimized leakage current < 0.5 mA
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecommunications
- Data system
- DC applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | EMC filter | |
| min. frequency | 50 Hz | |
| max. frequency | 60 Hz | |
| Rated voltage (DC) | 250 V | |
| Rated current | 16 A | |
| Rated Voltage | 250 VAC | |
| Capacity X|Y | X2 2 x 1500 nF, Y2 2 x 4.7 nF | |
| Inductance per line | 1.3 mH | |
| Connection | faston plug 6.3 mm | |
| Number of phases | 1 | |
| With fuse | No | |
| integrated switch | No | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 16 pieces |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Substance description | Triphenyl phosphate |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
