B84113H0000B060 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 6 A, 250 V (DC), 250 VAC, 3.6 mH, faston plug 6.3 mm, B84113H0000B060

Order No.: 75D2602
EAN: 4099889079821
MPN:
B84113H0000B060
B84113HB60
Series: B84113H

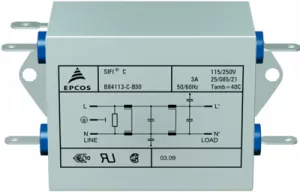

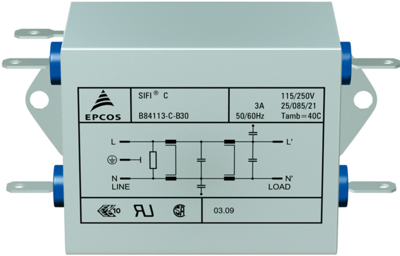

B84113H0000B060 TDK (EPCOS) Interference suppression filter Image 1
B84113H0000B060 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
41.2335 € *
Available: 4 pcs.
Total Price:
41.23 € *
Price list
Quantity
Price per unit*
1 pcs.
41.2335 €
5 pcs.
38.7583 €
24 pcs.
36.3902 €
48 pcs.
35.4025 €
192 pcs.
33.4152 €
*incl. VAT plus shipping costs
Subject to prior sale

EMC filter, B84113H0000B060, EPCOS

2-line filter SIFI-H for very high insertion loss

Features

  • Easy to install
  • Compact design
  • Optimized leakage current < 0.5 mA

Applications

  • Switch-mode power supplies
  • Industrial electronics
  • Telecommunications
  • Data system
  • DC applications
Technical specifications
Filter Property Value
Inductance per line 3.6 mH
max. frequency 60 Hz
Number of phases 1
With fuse No
Rated current 6 A
Connection faston plug 6.3 mm
max. operating temperature 100 °C
Capacity X|Y X2 2 x 1 µF, Y2 2 x 4.7 nF
integrated switch No
Rated Voltage 250 VAC
min. operating temperature -25 °C
Rated voltage (DC) 250 V
Version EMC filter
min. frequency 50 Hz
Logistics
Property Value
Customs tariff number 85363010
Original Packaging Bulk with 24 pieces
Country of origin CN
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
