B84113C0000B030 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 3 A, 250 V (DC), 250 VAC, 4.7 mH, faston plug 6.3 mm, B84113C0000B030
Unit Price (€ / pc.)
56.5488 € *
Available: 170 pcs.
Total Price:
56.55 € *
Price list
Quantity
Price per unit*
1 pcs.
56.5488 €
5 pcs.
53.1454 €
32 pcs.
48.8138 €
64 pcs.
47.4453 €
128 pcs.
46.0887 €
*incl. VAT plus shipping costs
Subject to prior sale

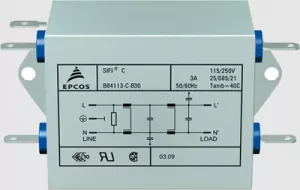

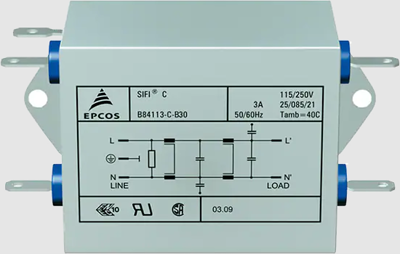

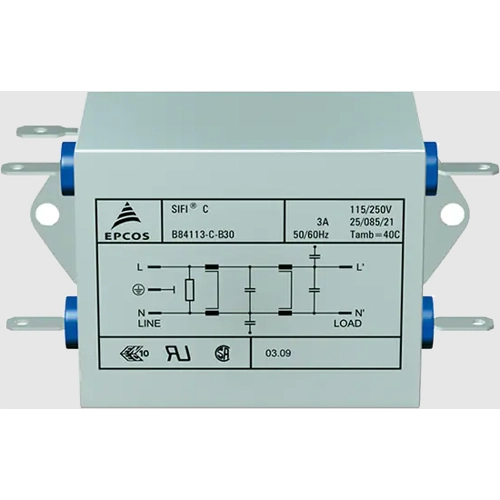

EMC filter, B84113C0000B030, EPCOS
2-line filter SIFI-H for very high insertion loss
Features
- Easy to install
- Compact design
- Optimized leakage current < 0.5 mA
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecommunications
- Data system
- DC applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 2 x 470 nF, Y2 2 x 4.7 nF | |
| Rated current | 3 A | |
| max. operating temperature | 85 °C | |
| Version | EMC filter | |
| Connection | faston plug 6.3 mm | |
| max. frequency | 60 Hz | |
| Inductance per line | 4.7 mH | |
| Rated voltage (DC) | 250 V | |
| With fuse | No | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | HU |
| Original Packaging | Bulk with 32 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
