B84112G0000B110 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 10 A, 250 V (DC), 250 VAC, 1.8 mH, faston plug 6.3 mm, B84112G0000B110

Order No.: 75D2704
EAN: 4099889080254
MPN:
B84112G0000B110
B84112GB110
Series: B84112G

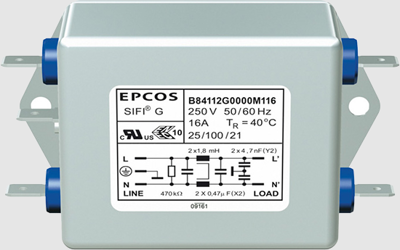

B84112G0000B110 TDK (EPCOS) Interference suppression filter Image 1
B84112G0000B110 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
25.0614 € *
Available: 111 pcs.
Total Price:
25.06 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0614 €
5 pcs.
23.1931 €
10 pcs.
21.8841 €
25 pcs.
20.6465 €
50 pcs.
19.6707 €
*incl. VAT plus shipping costs
Subject to prior sale

EMC filter, B84112G0000B110, EPCOS

2-line filter SIFI-G for enhanced insertion loss

Features

  • Easy to install
  • Compact design
  • Cost-optimized construction

Applications

  • Switch-mode power supplies
  • Industrial electronics
  • Telecommunications
  • Data system
  • DC applications
Technical specifications
Filter Property Value
max. operating temperature 100 °C
Connection faston plug 6.3 mm
min. operating temperature -25 °C
Capacity X|Y X2 2 x 680 nF, Y2 2 x 4.7 nF
Version EMC filter
Rated Voltage 250 VAC
Number of phases 1
Rated current 10 A
Inductance per line 1.8 mH
With fuse No
min. frequency 50 Hz
Rated voltage (DC) 250 V
integrated switch No
max. frequency 60 Hz
Logistics
Property Value
Country of origin CN
Customs tariff number 85363010
Original Packaging Bulk with 24 pieces
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
