B84112B0000B060 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 6 A, 250 V (DC), 250 VAC, 3.3 mH, faston plug 6.3 mm, B84112B0000B060
Unit Price (€ / pc.)
61.2493 € *
Available: 51 pcs.
Total Price:
61.25 € *
Price list
Quantity
Price per unit*
1 pcs.
61.2493 €
5 pcs.
57.5722 €
32 pcs.
52.8598 €
64 pcs.
51.3961 €
128 pcs.
49.9324 €
*incl. VAT plus shipping costs
Subject to prior sale

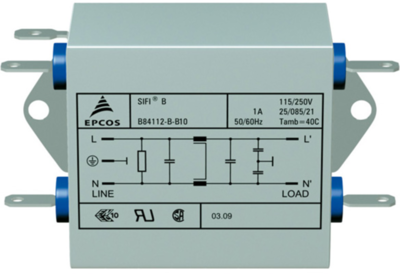

EMC filter, B84112B0000B060, EPCOS
2-line filter SIFI-B for enhanced insertion loss
Features
- Easy to install
- Compact design
- Optimized leakage current
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecommunications
- Data system
- DC applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 2 x 330 nF, Y2 2 x 4.7 nF | |
| Rated current | 6 A | |
| max. operating temperature | 85 °C | |
| Version | EMC filter | |
| Connection | faston plug 6.3 mm | |
| max. frequency | 60 Hz | |
| Inductance per line | 3.3 mH | |
| Rated voltage (DC) | 250 V | |
| With fuse | No | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | HU |
| Original Packaging | Bulk with 32 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
