B84111F0000B116 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, faston plug 6.3 mm, B84111F0000B116
Unit Price (€ / pc.)
31.7611 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
31.76 € *
Price list
Quantity
Price per unit*
1 pcs.
31.7611 €
5 pcs.
29.8690 €
30 pcs.
27.5842 €
60 pcs.
26.8107 €
120 pcs.
26.0610 €
*incl. VAT plus shipping costs
**Subject to prior sale

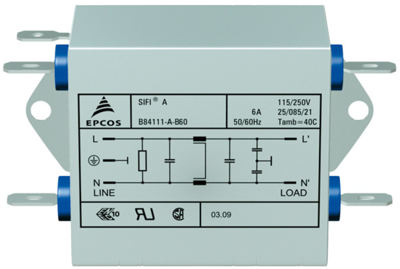

EMC filter, design SIFI F, type TDK/Epcos B84111.

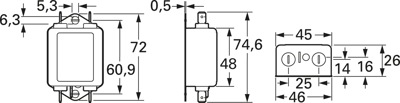

2-wire filter for single-phase systems, molded in metal case, with mounting straps on the face side; Rated voltage: 250 V AC/DC, 50/60 Hz. IEC climate category: 25/100/21. Operating temperatures: –25 to +100 °C. Leakage current: max. 0.5 mA. Rated capacitance X2/Y2: 2 x 0.1 µF and 2 x 4700 pF. Test logos: ENEC 10, UL, cUL. Connections: 6.3 x 0.8 mm tab terminals on both sides.
EMC filters with rated current of 16 A and 20 A, type B84111.
Technical attributes (type, rated current, rated inductance): B84111FB116, 16 A, 2 x 0.65 mH
Technical specifications
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | EMC Filter | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 650 µH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 2 x 100 nF, Y2 2 x 4700 pF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 16 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Bulk mit 30 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
