B84111F0000B110 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 10 A, 250 V (DC), 250 VAC, 870 µH, faston plug 6.3 mm, B84111F0000B110

Order No.: 75D244
EAN: 4099889079722
MPN:
B84111F0000B110
B84111FB110
Series: B84111F

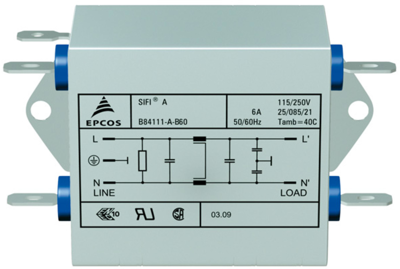

B84111F0000B110 TDK (EPCOS) Interference suppression filter Image 1

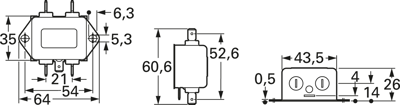

B84111F0000B110 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
16.3030 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
652.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
40 pcs.
16.3030 €

EMC filter, design SIFI F, type TDK/Epcos B84111.

2-wire filter for single-phase systems, molded in metal case, with mounting straps on the face side; Rated voltage: 250 V AC/DC, 50/60 Hz. IEC climate category: 25/100/21. Operating temperatures: –25 to +100 °C. Leakage current: max. 0.5 mA. Rated capacitance X2/Y2: 2 x 0.1 µF and 2 x 4700 pF. Test logos: ENEC 10, UL, cUL. Connections: 6.3 x 0.8 mm tab terminals on both sides.

EMC filters with rated current of 3.0 A to 10 A, type B84111.

Technical attributes (type, rated current, rated inductance): B84111FB110, 10 A, 2 x 0.87 mH

Technical specifications
Rated voltage (DC) 250 V
max. frequency 60 Hz
Number of phases 1
integrated switch No
Rated current 10 A
Inductance per line 870 µH
Capacity X|Y X2 2 x 100 nF, Y2 2 x 4700 pF
With fuse No
Version EMC filter
min. operating temperature -25 °C
Connection faston plug 6.3 mm
Rated Voltage 250 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Bulk with 40 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
