B84110A0000A060 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 6 A, 250 V (DC), 250 VAC, 1.9 mH, PCB connection, B84110A0000A060
Order No.: 74D7892
EAN: 4099889077919
MPN:
B84110A0000A060
B84110AA60
Unit Price (€ / pc.)
10.4244 € *
Standard delivery time from the manufacturer is: 15 Weeks

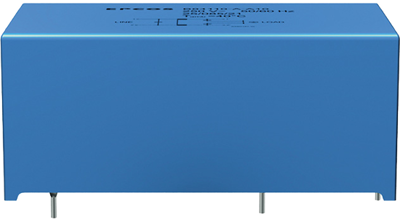

EMC filter, B84110A0000A060, EPCOS
2-line filter for PCB mounting
Features
- High insertion loss
- For PCB mounting
- Cost-effective EMC solution
Applications
- Low and medium switch-mode power supplies
- Data system
- Gambling machines
- Small-size equipment
- Industrial electronics
- DC applications
Technical specifications
| Rated voltage (DC) | 250 V | |
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| Rated current | 6 A | |
| Inductance per line | 1.9 mH | |
| Capacity X|Y | X2 0.22 µF, Y2 2 x4700 pF | |
| With fuse | No | |
| Version | EMC filter | |
| min. operating temperature | -25 °C | |
| Connection | PCB connection | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85363010 |
| Original Packaging | Bulk with 165 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
