B88069X5041S102 | TDK (EPCOS)
2 electrode arrester, axial, 800 V, 10 kA, ceramic, B88069X5041S102
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
1,082.90 € *
Price list
Quantity
Price per unit*
1000 pcs.
1.0829 €
5000 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

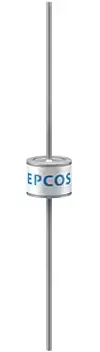

Surge arrester, B88069X5041S102, EPCOS
Features
- Standard size
- Very high current rating
- Very fast response time
- Stable performance over life
- Very low capacitance
- High insulation resistance
- RoHS-compatible
Applications
- Consumer electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | axial | |
| Activation voltage | 800 V | |
| discharge current | 10 kA | |
| Number of arresters | 2 | |
| Shell Material | ceramic |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85363090 |
| Original Packaging | Reel with 100 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
