B86305L0007R000 | TDK (EPCOS)
Suppressor choke, 4.2 mH, 7 A, B86305L0007R000
Order No.: 74D8329
EAN: 4099889026634
MPN:
B86305L0007R000
B86305L7R
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
111.9195 € *
Standard delivery time from the manufacturer is: 24 Weeks

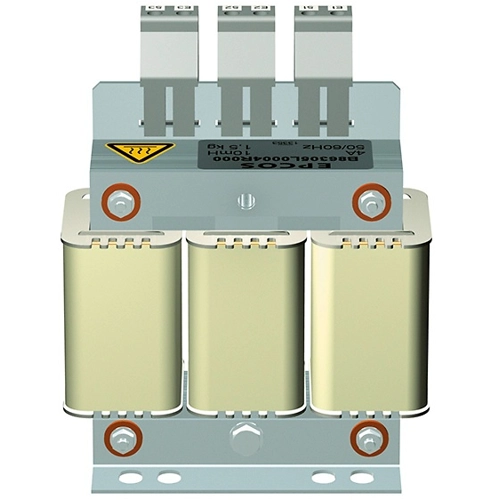

Suppressor inductor, B86305L0007R000, EPCOS
Features
- Low weight
- Compact design
- 3-phase line reactor
- Design complies with IEC 60076-6
Applications
- Frequency converters
- Traction systems
- HVAC systems
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | suppressor choke | |
| Inductance | 4.2 mH | |
| DC current | 7 A | |
| DC resistance | 112 mΩ | |
| Measuring frequency | 60 Hz | |
| Length | 124 mm | |
| Width | 123 mm | |
| Height | 93 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| Original Packaging | Bulk with 1 piece |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
