B82794C0686N465 | TDK (EPCOS)

Signal line choke, SMD, 68 mH, 200 mA, B82794C0686N465

Order No.: 74D7843
EAN: 4099889026603
MPN:
B82794C0686N465
B82794C686N465
TDK (EPCOS)

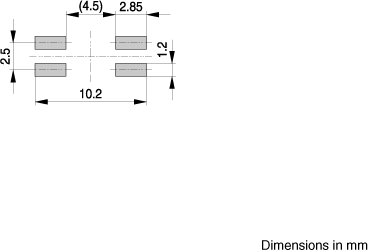

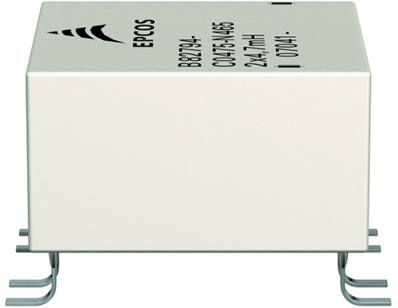

B82794C0686N465 TDK (EPCOS) Fixed Inductors Image 1
B82794C0686N465 TDK (EPCOS) Fixed Inductors Image 2
B82794C0686N465 TDK (EPCOS) Fixed Inductors Image 3
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 68 mH
DC current 200 mA
Tolerance -30/+50 %
DC resistance 3.4 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
2,097.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
750 pcs.
2.7965 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82794C0686N465, EPCOS

Features

  • Ferrite core
  • Suitable for reflow soldering
  • LCP case
  • RoHS-compatible

Applications

  • Telecom interfaces
  • RF equipment
Technical specifications
DC current 200 mA
Width 13.3 mm
Height 10.8 mm
Length 16.6 mm
DC resistance 3.4 Ω
Measuring frequency 10 kHz
Version signal line choke
Design SMD
Tolerance -30/+50 %
Inductance 68 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Reel with 250 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
