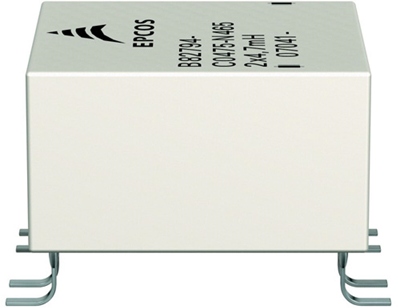

B82794C0286N465 | TDK (EPCOS)
Signal line choke, SMD, 28 mH, 400 mA, B82794C0286N465
Order No.: 74D7840
EAN: 4099889026573
MPN:
B82794C0286N465
B82794C286N465
Unit Price (€ / pc.)
2.7965 € *
Standard delivery time from the manufacturer is: 16 Weeks
Signal line choke, B82794C0286N465, EPCOS
Features
- Ferrite core
- Suitable for reflow soldering
- LCP case
- RoHS-compatible
Applications
- Telecom interfaces
- RF equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | signal line choke | |
| Inductance | 28 mH | |
| DC current | 400 mA | |
| Tolerance | -30/+50 % | |
| DC resistance | 1.2 Ω | |
| Measuring frequency | 10 kHz | |
| Design | SMD | |
| Length | 16.6 mm | |
| Width | 13.3 mm | |
| Height | 10.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
