B82794C0106N465 | TDK (EPCOS)

Signal line choke, SMD, 10 mH, 600 mA, B82794C0106N465

Order No.: 74D7839
EAN: 4099889026566
MPN:
B82794C0106N465
B82794C106N465
TDK (EPCOS)

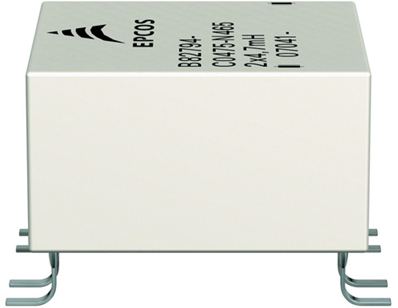

B82794C0106N465 TDK (EPCOS) Fixed Inductors Image 1
B82794C0106N465 TDK (EPCOS) Fixed Inductors Image 2
B82794C0106N465 TDK (EPCOS) Fixed Inductors Image 3
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 10 mH
DC current 600 mA
Tolerance -30/+50 %
DC resistance 700 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
2,097.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
750 pcs.
2.7965 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82794C0106N465, EPCOS

Features

  • Ferrite core
  • Suitable for reflow soldering
  • LCP case
  • RoHS-compatible

Applications

  • Telecom interfaces
  • RF equipment

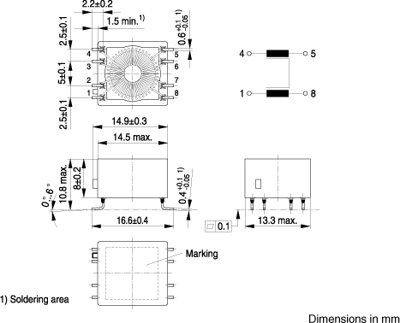

Technical specifications
DC current 600 mA
Width 13.3 mm
Height 10.8 mm
Length 16.6 mm
DC resistance 700 mΩ
Measuring frequency 10 kHz
Version signal line choke
Design SMD
Tolerance -30/+50 %
Inductance 10 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Reel with 250 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
