B82793S0513N201 | TDK (EPCOS)

Signal line choke, SMD, 51 µH, 800 mA, B82793S0513N201

Order No.: 73D9282
EAN: 4099889007596
MPN:
B82793S0513N201
B82793S513N201
Series: B82793S0

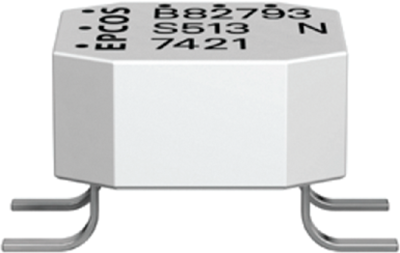

B82793S0513N201 TDK (EPCOS) Fixed Inductors Image 1
B82793S0513N201 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available: 844 pcs.
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.6065 €
100 pcs.
1.3685 €
250 pcs.
1.2495 €
1000 pcs.
1.1424 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD data and signal line chokes, type TDK/Epcos B82793.

Twin choke, suitable for use as current-compensated toroidal choke for signal and data lines, for example

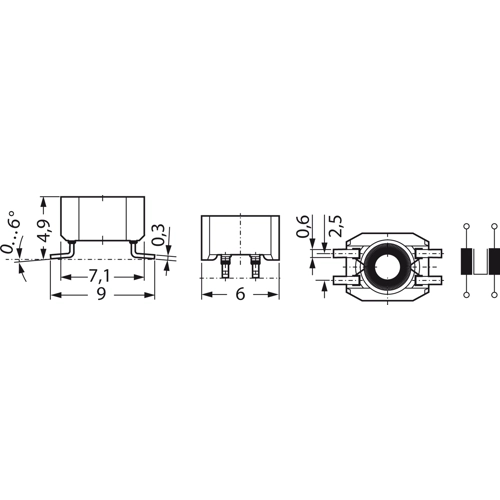

Technical specifications
Filter Property Value
Inductance 51 µH
DC current 800 mA
DC resistance 160 mΩ
Design SMD
Version signal line choke
Width 6 mm
Height 4.8 mm
Saturation current 800 mA
Tolerance -30/+50 %
Measuring frequency 100 kHz
Length 7.1 mm
Logistics
Property Value
Country of origin DE
Original Packaging Reel with 1,500 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
