B82793C0225N265 | TDK (EPCOS)

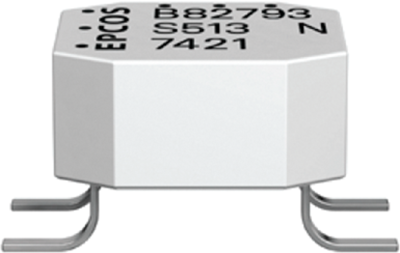

Signal line choke, SMD, 2.2 mH, 500 mA, B82793C0225N265
Unit Price (€ / pc.)
1.6422 € *
Available: 4 pcs.
Total Price:
4.93 € *
Price list
Quantity
Price per unit*
3 pcs.
1.6422 €
15 pcs.
1.4756 €
75 pcs.
1.3447 €
400 pcs.
1.2376 €
800 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD data and signal line chokes, type TDK/Epcos B82793.
Twin choke, suitable for use as current-compensated toroidal choke for signal and data lines, for example
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 500 mA | |
| DC resistance | 0.4 Ω | |
| Saturation current | 550 mA | |
| Measuring frequency | 10 kHz | |
| Tolerance | -30/+50 % | |
| Length | 7.1 mm | |
| Height | 4.8 mm | |
| Width | 6 mm | |
| Inductance | 2.2 mH | |
| Design | SMD | |
| Version | signal line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
