B82793C0105N265 | TDK (EPCOS)

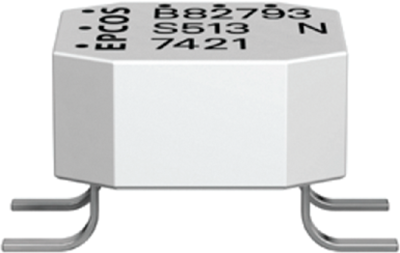

Signal line choke, SMD, 1 mH, 700 mA, B82793C0105N265
Unit Price (€ / pc.)
2.2134 € *
Available: 2,431 pcs.
Total Price:
2.21 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2134 €
10 pcs.
1.8445 €
100 pcs.
1.5708 €
250 pcs.
1.4161 €
1000 pcs.
1.3090 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD data and signal line chokes, type TDK/Epcos B82793.
Twin choke, suitable for use as current-compensated toroidal choke for signal and data lines, for example
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Measuring frequency | 100 kHz | |
| Length | 7.1 mm | |
| Tolerance | -30/+50 % | |
| Height | 4.8 mm | |
| Saturation current | 700 mA | |
| Inductance | 1 mH | |
| DC current | 700 mA | |
| Width | 6 mm | |
| DC resistance | 140 mΩ | |
| Design | SMD | |
| Version | signal line choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1,500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
