B82792C0226N365 | TDK (EPCOS)

Signal line choke, SMD 1812, 22 mH, 200 mA, B82792C0226N365

Order No.: 74D7828
EAN: 4099889026535
MPN:
B82792C0226N365
B82792C226N365
TDK (EPCOS)

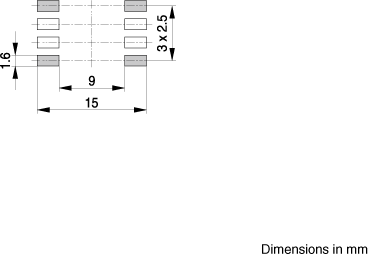

B82792C0226N365 TDK (EPCOS) Fixed Inductors Image 1

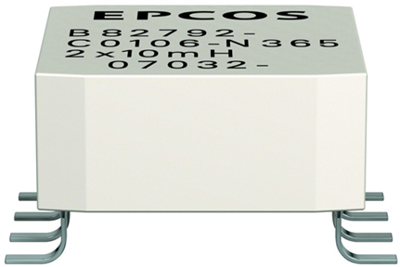

B82792C0226N365 TDK (EPCOS) Fixed Inductors Image 2

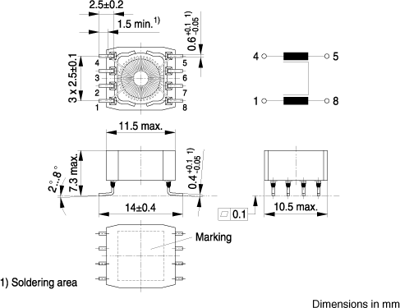

B82792C0226N365 TDK (EPCOS) Fixed Inductors Image 3
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 22 mH
DC current 200 mA
Tolerance -30/+50 %
DC resistance 1.6 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.9155 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,457.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
2.9155 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82792C0226N365, EPCOS

Features

  • Ferrite core
  • Suitable for reflow soldering
  • LCP case
  • RoHS-compatible

Applications

  • Telecom interfaces
  • ISDN systems
Technical specifications
DC current 200 mA
Width 10.5 mm
Height 7.3 mm
Length 11.5 mm
DC resistance 1.6 Ω
Measuring frequency 10 kHz
Version signal line choke
Design SMD 1812
Tolerance -30/+50 %
Inductance 22 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Reel with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
