B82792C0106N365 | TDK (EPCOS)

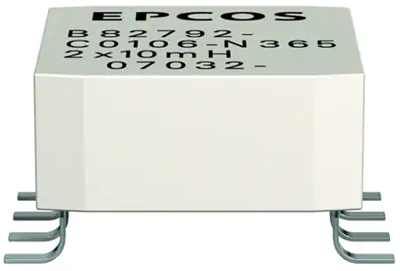

Signal line choke, SMD 1812, 10 mH, 500 mA, B82792C0106N365
Unit Price (€ / pc.)
3.2725 € *
Available: 445 pcs.
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
2.8679 €
100 pcs.
2.5228 €
500 pcs.
2.3324 €
1000 pcs.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD data and signal line chokes, type TDK/Epcos B82792C.
Can be used, for example, as current-compensated ring core choke for signal and data lines, with bifilar winding
Twin choke, type B82792C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 500 mA | |
| DC resistance | 1.1 Ω | |
| Saturation current | 500 mA | |
| Measuring frequency | 10 kHz | |
| Tolerance | -30/+50 % | |
| Length | 11.5 mm | |
| Height | 7.3 mm | |
| Width | 10.5 mm | |
| Inductance | 10 mH | |
| Design | SMD 1812 | |
| Version | signal line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
