B82791H2601N001 | TDK (EPCOS)

Power line choke, radial, 6.8 mH, 600 mA, B82791H2601N001

Order No.: 73D9232
EAN: 4099889007497
MPN:
B82791H2601N001
B82791H2601N1
TDK (EPCOS)

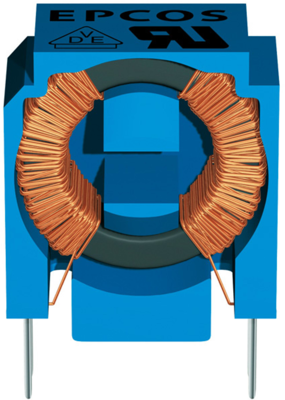

B82791H2601N001 TDK (EPCOS) Fixed Inductors Image 1
B82791H2601N001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 6.8 mH
DC current 600 mA
Tolerance -30/+50 %
DC resistance 630 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.3086 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
1,385.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
2.3086 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82791H2601N001, EPCOS

Features

  • Without potting
  • Ferrite core
  • Suitable for wave soldering
  • RoHS-compatible
  • High resonance frequency due to special winding technique and omission of potting

Applications

  • Suppression of common-mode interferences
  • Electronic ballasts in lamps
  • Switch-mode power supplies
Technical specifications
Inductance 6.8 mH
DC current 600 mA

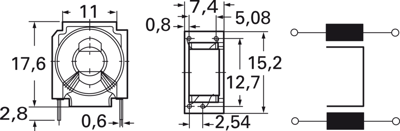

Width 7.4 mm
Length 15.3 mm
Design radial
DC resistance 630 mΩ
Version power line choke
Height 17.6 mm
Tolerance -30/+50 %
Measuring frequency 10 kHz
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Carton with 200 pieces
Compliance
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
