B82791H2501N001 | TDK (EPCOS)

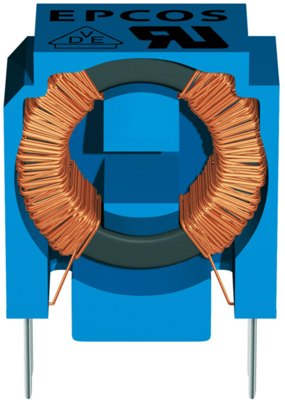

Power line choke, radial, 10 mH, 500 mA, B82791H2501N001
Unit Price (€ / pc.)
3.3439 € *
Available: 735 pcs.
Total Price:
3.34 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3439 €
10 pcs.
2.9393 €
100 pcs.
2.5823 €
600 pcs.
2.3443 €
1200 pcs.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line choke, B82791H2501N001, EPCOS
Features
- Without potting
- Ferrite core
- Suitable for wave soldering
- RoHS-compatible
- High resonance frequency due to special winding technique and omission of potting
Applications
- Suppression of common-mode interferences
- Electronic ballasts in lamps
- Switch-mode power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 500 mA | |
| DC resistance | 1 Ω | |
| Saturation current | 500 mA | |
| Measuring frequency | 10 kHz | |
| Tolerance | -30/+50 % | |

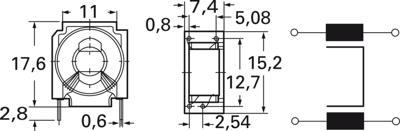

| Length | 15.2 mm | |
| Height | 17.6 mm | |
| Width | 11 mm | |
| Inductance | 10 mH | |
| Design | radial | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 600 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| RoHS conform | Yes |
| SVHC free | No |
