B82791H2401N001 | TDK (EPCOS)

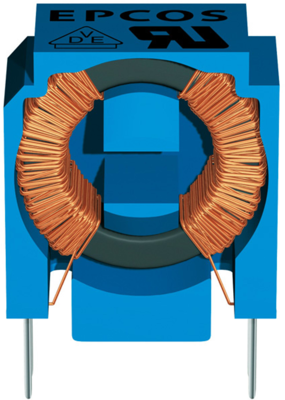

Power line choke, radial, 15 mH, 400 mA, B82791H2401N001
Order No.: 74D7825
EAN: 4099889026504
MPN:
B82791H2401N001
B82791H2401N1
Unit Price (€ / pc.)
2.3086 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power line choke, B82791H2401N001, EPCOS
Features
- Without potting
- Ferrite core
- Suitable for wave soldering
- RoHS-compatible
- High resonance frequency due to special winding technique and omission of potting
Applications
- Suppression of common-mode interferences
- Electronic ballasts in lamps
- Switch-mode power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 400 mA | |
| Tolerance | -30/+50 % | |

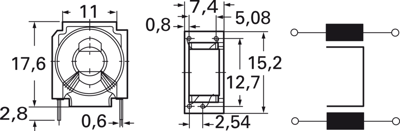

| Design | radial | |
| Width | 7.4 mm | |
| Height | 17.6 mm | |
| Inductance | 15 mH | |
| Version | power line choke | |
| Length | 15.3 mm | |
| DC resistance | 1.35 Ω | |
| Measuring frequency | 10 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
