B82791H0015A030 | TDK (EPCOS)

Data line choke, radial, 47 mH, 100 mA, B82791H0015A030

Order No.: 74D7824
EAN: 4099889026498
MPN:
B82791H0015A030
B82791H15A30
TDK (EPCOS)
B82791H0015A030 TDK (EPCOS) Fixed Inductors Image 1
B82791H0015A030 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 47 mH
DC current 100 mA
Tolerance -30/+50 %
DC resistance 5.1 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.4871 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
1,492.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
2.4871 €
Description
Technical specifications
Download
Logistics
Compliance

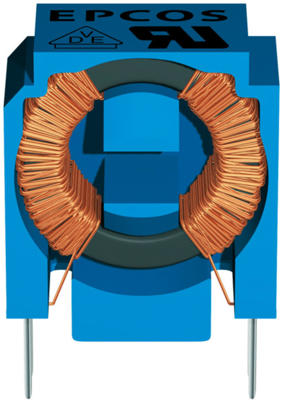

Data line choke, B82791H0015A030, EPCOS

Features

  • Without potting
  • Ferrite core
  • Suitable for wave soldering
  • RoHS-compatible
  • High resonance frequency due to special winding technique and omission of potting

Applications

  • Suppression of common-mode interferences
  • Electronic ballasts in lamps
  • Switch-mode power supplies
Technical specifications
Tolerance -30/+50 %
Width 7.4 mm
Version power line choke
DC current 100 mA
Length 15.2 mm
Height 17.6 mm
DC resistance 5.1 Ω
Design radial
Measuring frequency 10 kHz
Inductance 47 mH
Articles of same specification 0
Logistics
Original Packaging Tray with 200 pieces
Customs tariff number 85045000
Country of origin CN
Compliance
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
